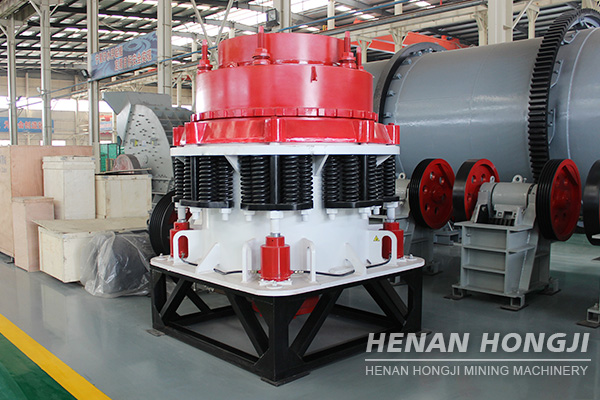

Spring Cone Crusher

Hongji CS series cone crushers combine the rotating bowl with piston into one crusher. This patented Multi-Action technology translates to lower operating costs, high uptime and consistent high-quality output.
Scope of application:

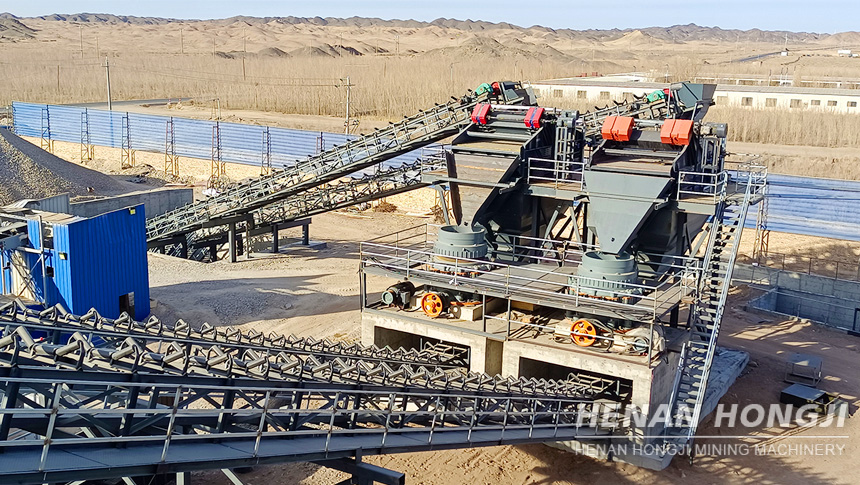

Cone crusher is widely used in metallurgy, construction, road building, and chemical hydrated silica industry. It can crush many kinds of ores and rocks with medium hardness, such as granite, barite, limestone, iron ore, gold ore, copper ore, etc.
Share With:
Product Description
Hongji CS series cone crushers combine the rotating bowl with piston into one crusher. This patented Multi-Action technology translates to lower operating costs, high uptime and consistent high-quality output. CS Series cone crushers were built for decades of reliable service. The design was as simple as possible with features that were user friendly, CS series cone crushers are ideal for secondary, tertiary and quaternary stages in hard and soft rock applications. Mobile cone crusher available.

Applied material : Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.

Feature
●     1. Continuous rotation of the operated cone body and high productivity.
●     2. Easy to press, impact and crush and low power consumption.
●     3. Even particle size of products and uniformly surface wear of movable cone.

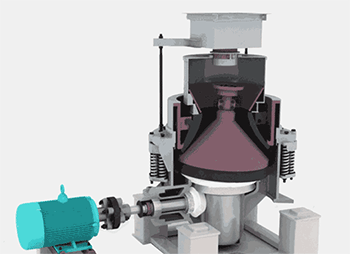

●     4. Simple structure: frame, horizontal axis, movable cone, balance wheel, eccentric bushing, upper crushing wall (fixed cone), down crushing wall (movable cone), fluid coupling, lubrication system, hydraulic system, control system, etc.
●     5. The movable cone swings close to discharge opening of crushing cavity, which intersects an equal parallel strip between them to make end products granularity. The feed opening is not large, which can deal with the primary crushed materials.
●     6. This kind of cone crusher adopts dry oil and water sealing avoiding dust entering and keeping clean.





Table Parameters
Model Movable Cone Diametermm (inch) Chamber Style Opening Side Closed Side Discharging Opening (mm) REV (r/min) Power (kw) Motor Model Capacity (t/h) Machine Size (mm)
Max.Feeding (mm)
CSB75 900 (3′) medium 83 102 9-22 580 6-75 Y315S-6/75 45-91 2821×1880 ×2164
coarse 159 175 13-38 59-163
CSD75 914 (3′) fine 13 41 3-13 580 6-75 Y315S-6/75 27-90 2821×1880 ×2410
medium 33 60 3-16 27-100
coarse 51 76 6-19 65-140
CSB160 1295 (4 1/4′) fine 109 137 13-31 485 6-185 Y355M2-6/185 109-181 2800×2342 ×2668
medium 188 210 16-31 132-253
coarse 216 241 19-51 172-349
CSD160 1295 (4 1/4′) fine 29 64 3-16 485 6-160 Y355M1-6/160 36-163 2800×2342 ×2668
medium 54 89 6-16 82-163
coarse 70 105 10-25 109-227
CSB240 1650 (5 1/2′) fine 188 209 16-38 485 6-240



181-327 3911×2870 ×3771
medium 213 241 22-51



258-417
coarse 241 268 25-64



299-635
CSD240 1650 (5 1/2′) fine 35 70 5-13 485 6-240



90-209 3917×2870 ×3771
medium 54 89 6-19



136-281
coarse 98 133 10-25



190-336
CSB400 2134 (7′) fine 253 278 19-38 435 6-400



381-726 5200×4300 ×4700
medium 303 334 25-51



608-998
coarse 334 369 31-64



870-1400
CSD400 2134 (7′) fine 51 105 5-16 435 6-400



190-408 5200×4300 ×4700
medium 95 133 10-19



354-508
coarse 127 178 13-25



454-599
Service Support

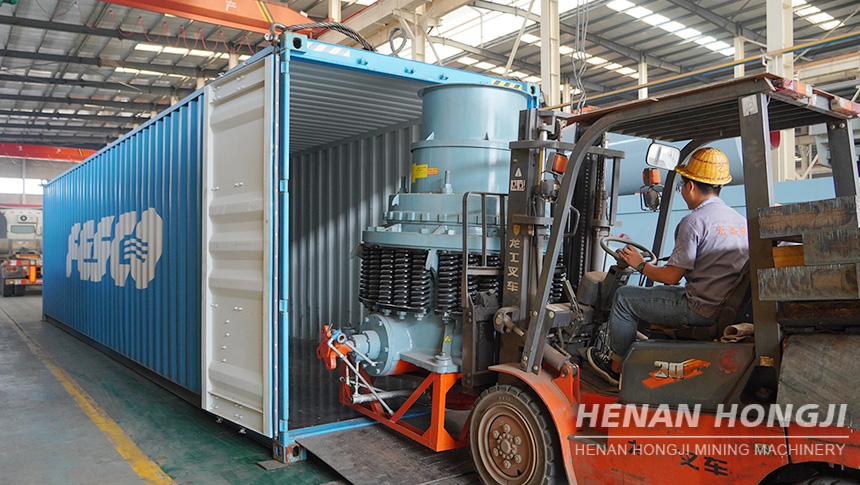

- 48-hour idling test machine before leaving the factory.

- You can take the materials to the factory test machine.

- We will customize the solution according to your needs.
