Ultra Fine Grinding Mill

Ultra fine grinding mill, also known as micro powder mill or ultrafine mill, is a grinding equipment designed for producing micro powders with high fineness. It is designed to grind materials into extremely fine particles or powders with high precision an
Scope of application:
Metallurgy, building materials, chemical engineering, and mining, etc.
Share With:
Product Description
Ultra fine grinding mill is capable of grinding various materials with hardness levels ranging from low to medium. It can handle materials with a Mohs hardness of up to 9 and a moisture content of up to 6%. Some common materials processed by micro powder grinding mills include limestone, calcite, marble, talc, barite, dolomite, and kaolin, etc.

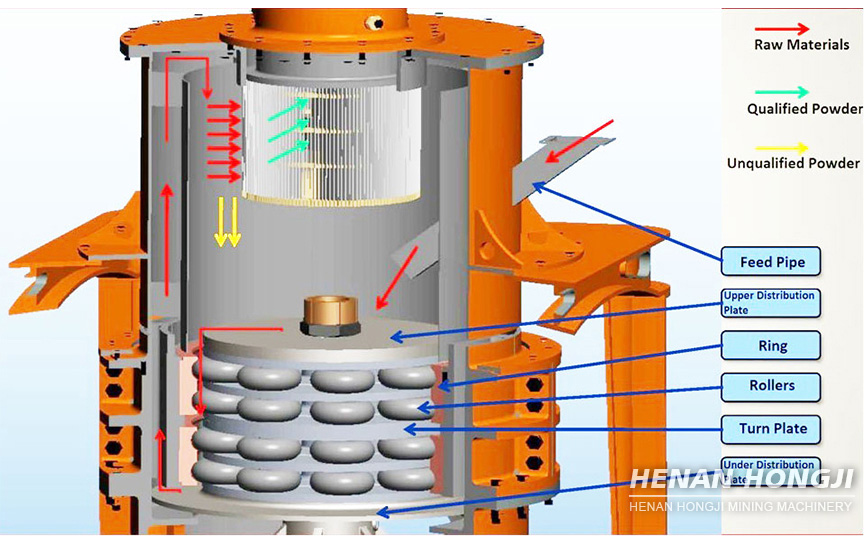

Work Principle:
Ultra fine grinding mill utilizes a combination of attrition and impact forces to reduce the size of the particles. It operates by rotating a set of grinding rollers or discs at a high speed, which creates a strong centrifugal force. The material is fed into the grinding chamber and is subjected to grinding, crushing, and impact between the rollers or discs and the grinding ring.

• The yield is 40% higher than other mills.
• High utilization rate of Wear material:2-5years.

• Adjustable particle size:325-3000mesh.
• High safety and reliability. The design of the mill is rigorous, so no screw loosening to damage the machine.
• Closed system, so it is the green and ideal equipment for environment protection.

Table Parameters
Model HJM80 HJM80A HJM90L HJM100L-H HJM100P HJM125L HJM1680L
Ring Diameter
800 800 900 1000 1000 1250 1680
Ring Number
3 3 3 4 4 4 4
Input Size
<10 <10 <10 <15 <15 <20 <20
Output Size
150-3000 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000
0.5-5.5 0.5-5.5 0.8-6.5 1.2-10 1.2-11 2.5-20 5-45
Outlet Size L*W*H
Main Motor Power
75 75 55*2 132/75*2 132/75*2 185 315
Service Support
- 48-hour idling test machine before leaving the factory.
- You can take the materials to the factory test machine.
- We will customize the solution according to your needs.
