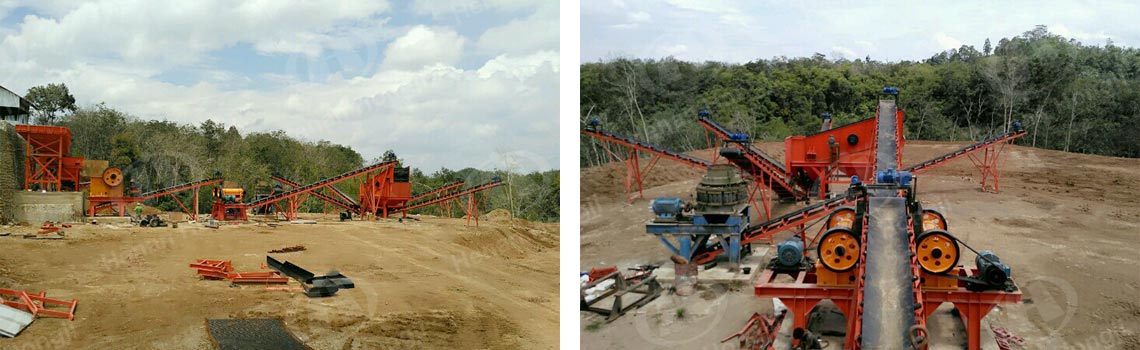

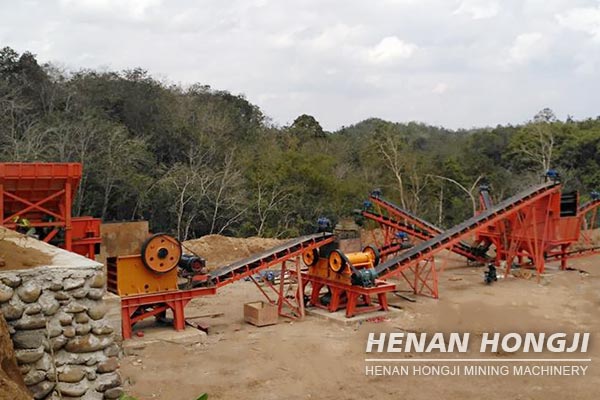

Indonesia 150TPH Crushing Plant

Raw material: Granite
Capacity: 100tph
Feeding size: <400
Product size: 0-10, 10-20, 20-40mm
Main machines: Vibrating feeder ZSW960x3800, jaw crusher PE600x900, jaw crusher PEX250x1200*2, cone crusher PY900, vibrating screen 3YK1860
Share With:
Product Details
Project background:

After a few time communication client ask us to make design for 150tph stationary stone crushing line located in Indonesia.

Raw material: Granite
Capacity: 100tph
Feeding size: <400
Product size: 0-10, 10-20, 20-40mm
Main machines: Vibrating feeder ZSW960x3800, jaw crusher PE600x900, jaw crusher PEX250x1200*2, cone crusher PY900, vibrating screen 3YK1860

Crushing Process:

Big granite materials are fed to the jaw crusher evenly and gradually by vibrating feeder through a hopper for primary crushing. After first crush, the material will transferred to fine jaw crusher by belt conveyor for secondary crush; the crushed granite materials will then transferred to vibrating screen for separating. After separating, the parts that can meet standard will be transferred away as final products, while the other parts will be fed to cone crusher, thus forming a closed circuit.

Client Feedback:

Very helpful in giving us solution for stationary stone crusher. Our engineer here said the overall quality is good and we will arrange an order again for the mobile sand crusher. Thank you.



Service support:



- 48-hour idling test machine before leaving the factory.

- You can take the materials to the factory test machine.

- We will customize the solution according to your needs.
